Bare Chip or Certified Module

Mini and Zero boards put the ESP32-H2FH4S chip (with 4 MB flash in the package) straight on a tiny PCB. Boards using the ESP32-H2-MINI-1 module carry Espressif’s RF certifications, which saves cost and time if your prototype will become a product.

Thread, Zigbee or Matter

Every ESP32-H2 board runs all three, but the firmware differs: OpenThread for Thread, the ESP Zigbee SDK for Zigbee, and ESP-Matter for Matter-over-Thread devices commissioned over BLE. Pick the stack based on the ecosystem you already use at home.

Power and Sleep

The H2’s main advantage over Wi-Fi chips is battery life as a Thread Sleepy End Device or Zigbee end device. Small boards without power LEDs or always-on USB chips get closest to the chip’s real sleep current; full dev boards are better for debugging.

USB and Debugging

The ESP32-H2 has native USB Serial/JTAG, so a single USB-C cable can flash, log and debug. Some boards add a USB-UART bridge too, which is handy when you need a second console for OpenThread CLI while debugging.

Border Router Plans

If you want to build your own Thread Border Router, you need two chips: a Wi-Fi ESP32 (such as an ESP32-S3) running the border router host and an ESP32-H2 running the RCP (radio co-processor) firmware, connected over UART.

Thread and Zigbee are mesh protocols, and you only really learn them with several nodes talking: a leader, routers and a sleepy end device, or a Zigbee coordinator with a router and an end device. Waveshare’s 3-pack of ESP32-H2 Mini boards gives you that test network in one order, with the same 96 MHz RISC-V core, 4 MB flash and 802.15.4 radio as our top pick. Use one as an OpenThread CLI leader, one as a router and one as a battery-powered end device, and you can watch the mesh form and heal. The listing is new with no reviews yet, but it’s the same board as our top pick from Waveshare’s own store. Stock was low when we checked.

M5Stack’s ESP32-H2 Gateway Unit is an 802.15.4 radio in a small plastic case that plugs into any M5Stack controller, or any ESP32 board, through a Grove UART port. Inside is an ESP32-H2-MINI-1-N2 certified module with 2 MB of flash, and M5Stack positions it for Zigbee 3.0, Thread 1.3 and Matter gateway projects. That makes it the tidiest radio half of a DIY Thread Border Router or Zigbee gateway: flash it with Espressif’s RCP firmware, connect it to a Wi-Fi ESP32 running the border router host, and you avoid loose wires and bare boards. There’s only one review so far (5 stars), so treat it as promising rather than proven.

The ESP32-H2-Zero follows Waveshare’s popular Zero form factor: a postage-stamp board with USB-C, the ESP32-H2FH4S with 4 MB flash and 320 KB SRAM, and pins arranged to stay compatible with Espressif’s ESP32-H2-DevKitM-1. Its small size and lack of extra chips make it a good fit for a battery-powered Zigbee temperature sensor, a door contact or a Thread button that you tuck inside an enclosure, and Waveshare provides ESP-IDF and Arduino IDE examples. Reviews are mixed but few (about 3.8 stars from 7 ratings), and stock was down to 2 when we checked.

When your prototype moves from a breadboard to your own PCB, castellated boards save a lot of RF layout work. This Waveshare 2-pack uses the same ESP32-H2FH4S with 4 MB flash and USB-C, and Waveshare notes the castellated module edges let you solder it directly onto a carrier board, like an SMD module. That’s ideal for a custom Zigbee wall switch, a Thread sensor with its own battery holder, or a small batch of Matter-over-Thread devices for your home. It’s a new listing with no reviews yet, sold by Waveshare directly.

The SuperMini form factor made the ESP32-C3 a budget favorite, and Teyleten Robot’s ESP32-H2 SuperMini 3-pack brings the same idea to the H2: three small boards with the 96 MHz RISC-V core, the 802.15.4 radio and Bluetooth LE, at the lowest cost per board in this guide. They’re a good way to scatter several Zigbee or Thread nodes around the house for experiments. The listing is new with no reviews and doesn’t state flash size clearly, and SuperMini boards are known for simple voltage regulators and small antennas, so expect less range than the Waveshare boards and keep these for learning rather than permanent installs.

Espressif’s open-source ESP Thread Border Router design splits the job in two: a Wi-Fi ESP32 runs the border router host, and an ESP32-H2 runs the RCP (radio co-processor) firmware, linked over UART. The XIAO ESP32S3 is our pick for the host half. Its ESP32-S3 with 8 MB of PSRAM has plenty of headroom for the OpenThread host stack and a web interface, it has a U.FL connector for a better Wi-Fi antenna, and it’s small enough to sit next to an H2 board or the M5Stack H2 unit in a compact enclosure. It’s a proven board (about 4.6 stars from hundreds of ratings) that also works as a Zigbee gateway host.

Sometimes the honest answer is that you don’t need an ESP32-H2 at all. The ESP32-C6 has the same 802.15.4 radio for Thread and Zigbee plus Wi-Fi 6, so one chip can be a Matter-over-Wi-Fi device, a Thread end device, or a Zigbee node that also reports over Wi-Fi. Seeed’s XIAO ESP32C6 is the best-reviewed C6 board on Amazon (about 4.7 stars from 160+ ratings). Choose the H2 when battery life matters most and the device will live entirely on Thread or Zigbee; choose the C6 when it’s mains-powered or needs Wi-Fi. Our ESP32-C6 buying guide covers 12 C6 boards.

First ESP32-H2 board?

Start with the Waveshare ESP32-H2 Mini, or the 3-pack if you want a mesh to play with.

Prototyping a product?

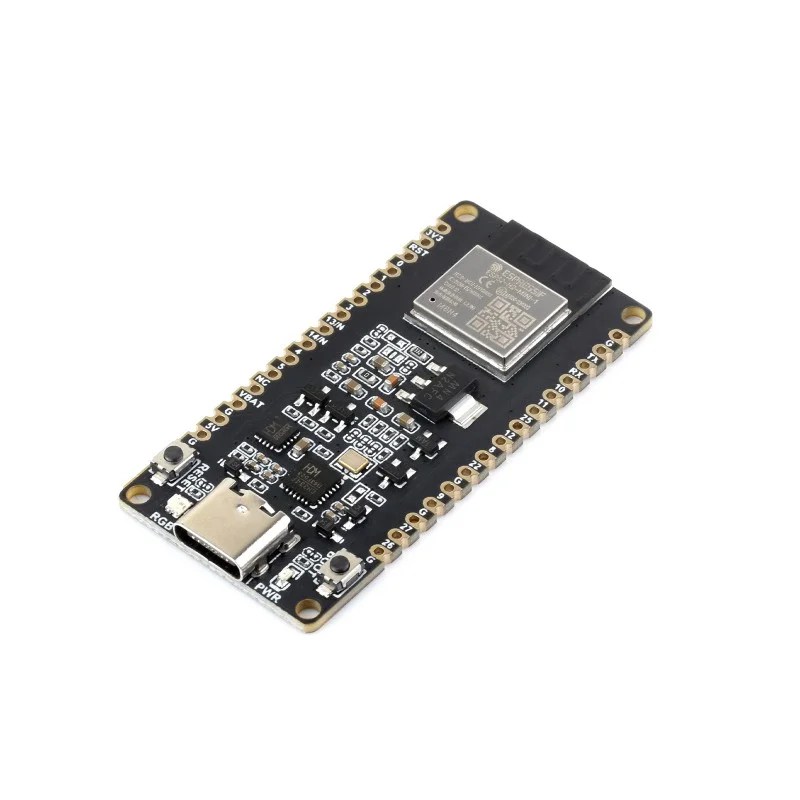

The ESP32-H2-DEV-KIT-N4 uses the certified MINI-1 module and DevKitM-1 pinout.

Building a Thread Border Router?

Pair the M5Stack H2 Gateway Unit (or any H2 board) with a XIAO ESP32S3 host.

Battery sensor in an enclosure?

The ESP32-H2-Zero is tiny and has no extra chips draining the battery.

Designing your own PCB?

The castellated Waveshare 2-pack solders straight onto your carrier board.

Need Wi-Fi too?

Skip the H2 and get the XIAO ESP32C6 with Wi-Fi 6, Thread and Zigbee.

Does the ESP32-H2 have Wi-Fi?

No. The ESP32-H2 has Bluetooth 5 (LE) and an IEEE 802.15.4 radio for Thread and Zigbee, but no Wi-Fi. That’s a deliberate choice for low power. If your device needs Wi-Fi as well, use an ESP32-C6, or pair the H2 with a Wi-Fi ESP32.

Can an ESP32-H2 work as a Thread Border Router?

Not alone, because a border router needs a Wi-Fi or Ethernet link. The standard approach is Espressif’s ESP Thread Border Router design: an ESP32-H2 runs the RCP firmware and connects over UART to a Wi-Fi ESP32 (such as an ESP32-S3) running the border router host. See our OpenThread Border Router guide and our Thread protocol overview.

Can I build Matter devices with the ESP32-H2?

Yes. The ESP32-H2 is a good fit for Matter-over-Thread end devices such as sensors, switches and lights, built with Espressif’s ESP-Matter SDK. Devices are commissioned over Bluetooth LE and then join your Thread network through an existing border router. Our Matter overview and Matter 1.4 article explain how it fits together.

Can I program the ESP32-H2 with the Arduino IDE?

Yes. The Arduino-ESP32 core version 3.x supports the ESP32-H2, including Zigbee examples. For Thread, Matter and full control over low-power modes, ESP-IDF is the better choice. Set it up with our ESP-IDF installation guide.

ESP32-H2 or ESP32-C6: which should I buy?

Choose the ESP32-H2 for battery-powered devices that live entirely on Thread or Zigbee, where low power matters most. Choose the ESP32-C6 for mains-powered devices, Wi-Fi gateways and anything that needs Wi-Fi 6 alongside Thread or Zigbee. Our ESP32-C6 buying guide compares C6 boards.
