LWM2M Getting Started Guide for IoT Device Management

LWM2M is a protocol specifically designed for managing and controlling Internet of Things (IoT) devices in a lightweight and efficient manner. It is a device and service management protocol for lightweight machine-to-machine communication. This was developed by the Open Mobile Alliance (OMA) and is based on the Constrained Application Protocol (CoAP), a lightweight and RESTful protocol for constrained devices.

lwm2m

LWM2M Introduction

The Lightweight M2M (LWM2M) protocol is a standardized and lightweight communication protocol specifically designed for the efficient management of IoT devices. It provides a framework for secure device management and data communication between IoT devices and management servers. It offers numerous benefits, including low resource consumption, scalability, and interoperability across various IoT platforms. By utilizing CoAP (Constrained Application Protocol) over UDP or TCP, LWM2M ensures efficient and secure communication while minimizing network overhead.

Key Concepts

LWM2M revolves around three key concepts: Objects, Object Instances, and Resources. Objects represent a logical collection of related resources that define the behavior and characteristics of a device or application. Object Instances differentiate between multiple occurrences of an object within a device, allowing for individual management. Resources are the specific attributes or parameters within an object instance, such as temperature, battery level, or firmware version. They can be read, written, or observed to monitor and control device functionality.

LWM2M Objects

Objects are a fundamental concept in the LWM2M protocol and play a crucial role in defining the behavior and functionality of IoT devices. An object represents a logical collection of related resources that represent various aspects of a device or application. Objects provide a standardized way to organize and manage data within the LWM2M framework.

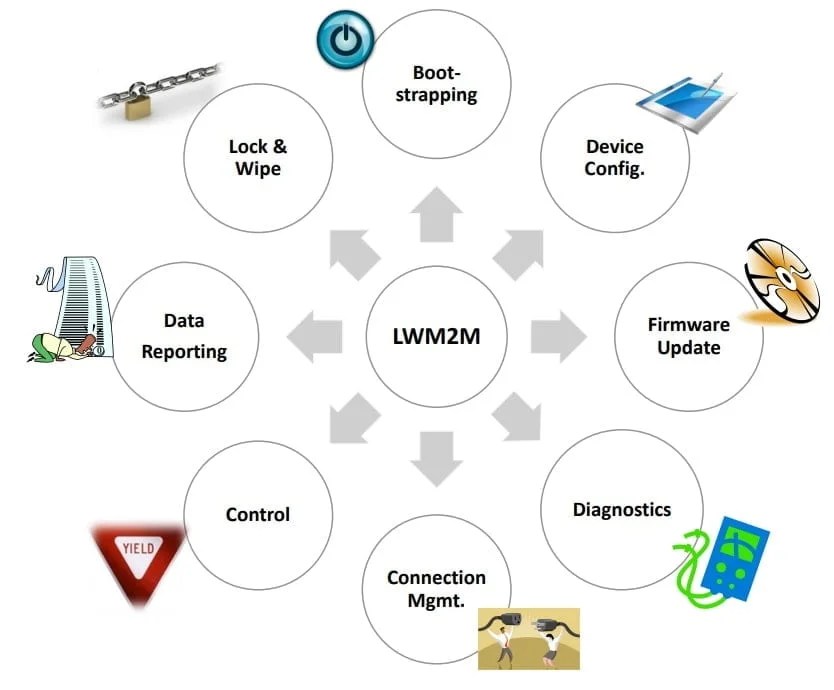

lwm2m objects

Each object has a unique Object ID that identifies its purpose and defines its set of resources. For example, Object ID 3 represents the Device object, which contains resources related to device information such as manufacturer, model number, firmware version, and power source status.

Objects can have one or more instances, referred to as Object Instances. Object Instances differentiate multiple occurrences of an object within a device. For instance, if a device has multiple sensors of the same type, each sensor can be represented as a separate object instance under the corresponding object.

  • An object in LWM2M is a logical grouping of related functionality or data within an IoT device. It represents a specific aspect or feature of the device, such as device information, connectivity, sensor data, or control capabilities.
  • Each object is uniquely identified by an Object ID, which is a numeric value assigned by the OMA. For example, Object ID 3 represents the Device object, which provides information about the device itself.
  • Objects can have multiple instances, allowing for multiple occurrences of the same object on a single device. Each object instance is identified by an Instance ID, which is a numeric value. For example, Object ID 3, Instance ID 0 represents the first instance of the Device object.
  • Object instances can have their own set of resources, enabling individual configuration and management of each instance.

You can find all objects on OMA objects and the resources registry link here.

LwM2M Resources

Resources are the specific attributes or parameters within an object instance that provide access to the device’s data or functionality. Resources can be read-only, write-only, or readable/writable, depending on the specific use case. Examples of resources include temperature, humidity, location, status, configuration settings, and control commands.

  • Resources are individual data points or functionality exposed by an object. They represent specific attributes, parameters, or actions that can be accessed, observed, or controlled.
  • Each resource within an object is identified by a Resource ID, which is a numeric value. For example, Resource ID 0 represents the Manufacturer resource within the Device object, providing information about the device manufacturer.
  • Resources can have different data types, such as strings, integers, floats, booleans, or binary data. They can also have specific access permissions, indicating whether they can be read, written, observed, or executed.
  • Resources can be read or written to obtain or modify their values, observed to receive notifications about value changes, or executed to trigger specific actions or operations.
  • The LWM2M protocol defines a standardized set of pre-defined objects and resources, which cover common functionalities and data types. However, custom objects and resources can also be defined to meet specific device requirements.

Objects, along with their instances and resources, are defined using an object data model, which specifies the structure and semantics of the data within the LWM2M framework. The LWM2M standard provides a set of predefined objects, such as the Device, Connectivity Monitoring, and Firmware Update objects. Additionally, custom objects can be defined to suit specific application requirements.

The LWM2M object model simplifies device management by providing a standardized and extensible way to represent and access device data. It enables interoperability among different devices and management servers, allowing for seamless integration and data exchange within the IoT ecosystem.

By leveraging the power of objects, LWM2M offers a flexible and scalable approach to device management, enabling efficient data representation, access, and control in IoT deployments.

Objects and Resources Example

Let’s take the Device object as an example, which is one of the pre-defined objects in LWM2M. It provides information about the device itself. Here are a few example resources within the Device object:

Manufacturer (Resource ID: 0): This resource provides the name of the device manufacturer. It can be a string value, such as “Example Inc.”

Model Number (Resource ID: 1): This resource represents the model number or identifier of the device. It can be a string value, such as “XYZ123”.

Serial Number (Resource ID: 2): This resource indicates the serial number of the device. It can be a string value, such as “123456789”.

Firmware Version (Resource ID: 3): This resource specifies the version of the firmware running on the device. It can be a string value, such as “v1.0.2”.

Reboot (Resource ID: 4): This resource is an executable resource that triggers a reboot of the device when executed.

These are just a few examples of the resources within the Device object. By accessing and manipulating these resources, a management server can retrieve information about the device manufacturer, model, serial number, and firmware version, and even reboot the device remotely.

Objects Instances

In LWM2M, an object instance is a specific occurrence or instantiation of an object within an IoT device. It allows for the creation of multiple instances of the same object on a single device, each with its own set of resources.

Let’s consider the Device object as an example. The Device object provides information about the device itself, such as its manufacturer, model, and firmware version.

Now, let’s say we have a device that supports multiple SIM cards. We can create object instances within the Device object to represent each SIM card slot or instance on the device. Each object instance will have its own set of resources, providing information specific to that SIM card.

For instance, considering the Device object instance for SIM Card Slot 1:

Object ID: The Device object ID remains the same for all instances (e.g., Object ID 3).
Instance ID: Each object instance will have its own unique Instance ID (e.g., Instance ID 0 for SIM Card Slot 1).
Resources: The resources within the Device object instance will provide information related to that specific SIM card, such as SIM card status, phone number, signal strength, and data usage.
By creating multiple instances of the Device object, we can represent and manage different SIM cards or other similar entities within a single device. This allows for individual configuration, monitoring, and control of each instance while leveraging the standardized structure provided by the Device object.

It’s important to note that the number of instances an object can have and the specific resources within each instance may vary depending on the object’s definition and the device’s capabilities.

In addition to the Device object, there are several other pre-defined objects in LWM2M, such as Connectivity, Firmware, Location, and Security. Each object has its own set of resources that provide specific functionality and information related to that object.

It’s important to note that while LWM2M provides a standardized set of pre-defined objects and resources, custom objects and resources can also be defined to suit the specific needs of IoT devices. This allows for flexibility and extensibility in representing and managing different types of devices and their functionalities.

LWM2M Architecture

The LWM2M architecture consists of three main components: LWM2M clients, LWM2M servers, and Application Protocol Interfaces (APIs). Clients are the IoT devices being managed, while servers are responsible for managing and controlling the devices. APIs provide communication interfaces between clients and servers, enabling registration, data retrieval, and configuration updates. The communication between clients and servers is typically based on the CoAP protocol, allowing efficient and secure data exchange.

Device Management

LWM2M simplifies device management tasks by providing standardized operations for device registration, provisioning, and firmware updates. It allows for efficient monitoring and control of devices, facilitating tasks such as parameter retrieval, remote configuration, and software updates. The protocol supports various management features, including lightweight data models, attribute management, and event notifications, enabling robust device management across diverse IoT deployments.

lwm2m protocol stack

Security

Security is a critical aspect of IoT device management, and LWM2M addresses this through several security features. It supports device authentication, ensuring that only authorized devices can connect to the server. Communication between clients and servers is secured using CoAP with DTLS (Datagram Transport Layer Security). Access control mechanisms are implemented to restrict operations based on user roles and privileges. Additionally, LWM2M provides secure firmware updates, ensuring the integrity and authenticity of the firmware packages being installed on devices.

LWM2M Transport Protocols

LWM2M is designed to work with different transport protocols, primarily using CoAP over UDP or TCP. CoAP is a lightweight protocol suitable for resource-constrained devices, as it minimizes network overhead and power consumption. UDP is typically used for constrained environments where reliability can be traded off for reduced resource usage, while TCP provides reliable and ordered delivery of messages. The choice of transport protocol depends on the specific requirements of the IoT deployment, considering factors such as device capabilities, network conditions, and security needs.

LWM2M Interoperability and Standardization

Interoperability is crucial in the IoT ecosystem, allowing devices from different manufacturers and platforms to seamlessly communicate and work together. LWM2M follows standardization efforts by organizations such as the Open Mobile Alliance (OMA) to ensure compatibility and interoperability across devices and management systems. By adhering to these standards, LWM2M enables the development of a diverse and interconnected IoT ecosystem, where devices and management platforms can interact and exchange data without compatibility issues.

Use Cases and Industry Adoption

LWM2M has gained significant adoption across various industries and is being used in diverse IoT applications. Examples include smart metering, where LWM2M enables efficient management and monitoring of energy consumption; industrial monitoring, where it facilitates remote monitoring and control of industrial equipment; asset tracking, where it helps track and manage the location of valuable assets; and home automation, where LWM2M enables the control and management of smart home devices. The wide industry adoption of LWM2M demonstrates its versatility and effectiveness in managing and securing IoT devices.

Future Trends and Roadmap for LWM2M

The future of LWM2M looks promising, with ongoing developments and advancements in the protocol. Efforts are being made to enhance the security features, expand the range of supported devices and data models, and improve interoperability with other IoT standards. Additionally, the integration of LWM2M with emerging technologies such as edge computing and artificial intelligence is expected to open up new possibilities for intelligent device management and decision-making. As IoT continues to evolve, LWM2M is likely to play a key role in enabling scalable and efficient device management solutions.

LWM2M Server and Client Implementations

Several LWM2M server and client implementations are available, both open-source and commercial. These implementations provide the necessary functionalities to deploy and manage LWM2M-based IoT applications. Popular open-source options include Eclipse Wakaama, Leshan, and AwaLWM2M, which offer extensible and customizable solutions. Commercial offerings, such as those provided by IoT platform providers, offer additional features like device management dashboards.

Popular LwM2M Client Libraries

Here are some popular LWM2M client libraries that can be used to develop client applications:

Eclipse Wakaama: Wakaama is an open-source LWM2M client library developed by the Eclipse Foundation. It provides a C implementation of the protocol and is known for its lightweight nature and ease of integration with constrained IoT devices.

Leshan: Leshan is another open-source client library that offers implementations in both Java and C. It provides a comprehensive set of features for LWM2M device management and can be used for building LWM2M clients in various IoT applications.

AwaLWM2M: AwaLWM2M is an open-source client library written in C. It offers a flexible and extensible framework for developing LWM2M clients, supporting both IPv4 and IPv6 connectivity and providing a rich set of APIs for managing resources and interacting with LWM2M servers.

LWM2M for Contiki: LWM2M for Contiki is a lightweight implementation of LWM2M specifically designed for Contiki OS, which is popular in the IoT domain. It provides a C-based client library that can be easily integrated into Contiki-based IoT devices.

ARM Mbed Client: Mbed Client is a commercial client library developed by ARM. It provides a high-level API for building clients and offers comprehensive support for LWM2M features, including secure communication, device management, and firmware updates.

These are just a few examples of popular LWM2M client libraries available in the market. Depending on your specific requirements, device platform, and programming language preferences, you can choose the most suitable library to develop your LWM2M client application.

Popular LWM2M Server Libraries

Here are some popular LWM2M server implementations that can be used to manage IoT devices:

Eclipse Leshan: Leshan is an open-source server implementation developed by the Eclipse Foundation. It provides a Java-based server that supports device management functionalities, including registration, observation, and remote configuration of LWM2M devices.

Wakaama LWM2M Server: Wakaama, also known as liblwm2m, is an open-source server implementation written in C. It offers a lightweight server solution that can be easily integrated into various IoT platforms and provides management capabilities for LWM2M devices.

Open Mobile Alliance (OMA) LWM2M Server: OMA provides an official server implementation that complies with the LWM2M specifications. This server implementation ensures interoperability with LWM2M client devices and supports standard device management features.

AwaLWM2M Server: AwaLWM2M also offers a server component in addition to its client library. It is an open-source server implementation written in C and provides a robust server infrastructure for managing LWM2M devices and their resources.

ARM Mbed Cloud: Mbed Cloud is a commercial IoT device management platform provided by ARM. It includes an LWM2M server component that offers comprehensive device management capabilities, including device provisioning, monitoring, firmware updates, and secure communication.

These are some well-known LWM2M server implementations available in the market. They provide a range of features and support different deployment scenarios. You can choose the server implementation based on your specific requirements, scalability needs, and integration capabilities with your existing IoT infrastructure.

Applications

Here are ten potential LWM2M applications that highlight the versatility and usefulness of the protocol:

Smart Metering: It can be used for efficient management and monitoring of smart meters in utility companies. It enables remote reading of energy consumption, real-time monitoring of power usage, and configuration of meter parameters.

Industrial Monitoring and Control: It can facilitate remote monitoring and control of industrial equipment and machinery. It allows for real-time data collection, status monitoring, and remote configuration of parameters for efficient asset management.

Asset Tracking and Management: LWM2M can be employed for tracking and managing valuable assets in logistics and supply chain industries. It enables real-time tracking of asset location, monitoring of environmental conditions, and tracking of asset usage and maintenance history.

Smart Building Automation: LWM2M can help automate and manage various aspects of smart buildings. It allows for centralized control and monitoring of devices such as HVAC systems, lighting, access control systems, and energy management systems.

Healthcare Monitoring: LWM2M can be utilized in healthcare applications for remote patient monitoring. It enables the collection and transmission of vital signs data, medication adherence tracking, and remote configuration of medical devices.

Fleet Management: LWM2M can assist in fleet management by providing real-time tracking of vehicles, monitoring driver behavior and vehicle diagnostics, and enabling remote configuration of fleet parameters.

Environmental Monitoring: LWM2M can be deployed in environmental monitoring applications to collect data on air quality, pollution levels, temperature, and humidity. It allows for real-time monitoring and analysis of environmental conditions.

Smart Agriculture: LWM2M can aid in agricultural applications by enabling remote monitoring of soil moisture, temperature, and humidity. It allows for efficient irrigation control, pest monitoring, and optimization of crop management.

Home Automation: LWM2M can be utilized in smart home applications for managing and controlling various devices, such as thermostats, lighting systems, security systems, and appliances, through a centralized management platform.

Vehicle Telematics: LWM2M can be integrated into vehicle telematics systems to enable real-time tracking of vehicles, monitoring of engine diagnostics, fuel consumption tracking, and remote configuration of vehicle parameters.

These are just a few examples of how LWM2M can be applied across different industries and use cases. The flexibility and standardized device management features of LWM2M make it a suitable choice for a wide range of IoT applications.
